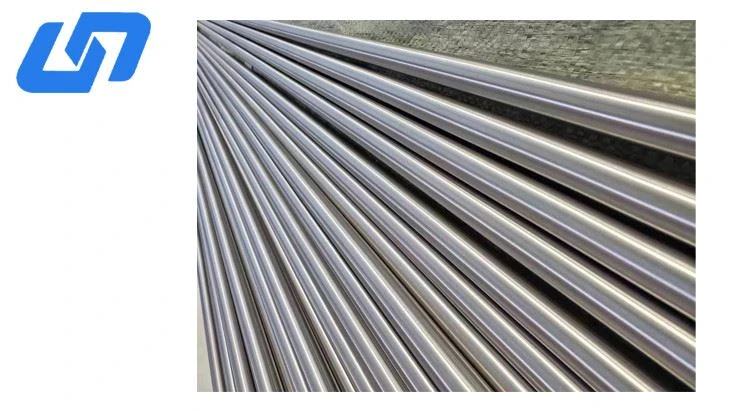

ASTM B348 Titanium Bar
Qhov no ASTM B348 Cov Lus Qhia Tshwj Xeeb rau cov annealed Titanium thiab Titanium Alloy Tuav thiab Pob Khoom, Cov Qib Kawm ntawm qib1 txog qib 34.
Khoom Taw qhia
1. Cov Lus Txhais
1.1 Cov Lus Siv Cov Lus Txhais Tshwj Xeeb rau Cov Qauv no:
1.1.1 bar, n - ib qho kub kuav los tiag, tsim rau, lossis txias ua haujlwm semifinished cov khoom ntu ntu uas qhov chaw hla ntu yog sib npaug
rau lossis tsawg dua 16 hauv. 2 (10323mm2); duab plaub lub thawv yuav tsum muaj tsawg dua los yog sib npaug nrog 10 hauv. (254 hli) qhov dav thiab ntau dua 0.1875 hauv. (4.8 mm) hauv tuab.
1.1.2 billet, n-ib qho ntu semifinished ntu kub dov los yog forged los ntawm ingot, nrog tus ntoo khaub lig cheeb tsam loj dua 16
in2 (10323mm2) uas nws qhov dav tsawg dua tsib zaug nws qhov tuab.
2. Qhov ntau thiab tsawg, Nyhav, thiab Pom Zoo Ntau Yam
2.1 Loj-Cov Tolerances rau cov khoom siv titanium thiab titanium alloy cov ntaub ntawv pov thawj los ntawm qhov kev pom zoo no yuav tsum muaj raws li teev hauv Daim Duab
2-11, raws li tsim nyog.
2.2 Nyhav - Qhov ntau ntxiv yuav siv tau rau cov khoom ntawm ib qib, tuab, qhov dav, thiab qhov ntev tau txiav txim ntawm ib qho
lub sijhawm rau cov zaub mov xa tuaj ib zaug rau ib qho chaw. Ntau qhov sib txawv ntawm qhov loj me tib yam thiab qib yuav tau ua ke rau
kom muaj nuj nqis ntxiv. Kev xa khoom hnyav ntawm txhua qhov khoom ntawm kev txiav txim qhov loj hauv ib qho tiav yuav dhau qhov nyhav theoretical ntau npaum li 10%.
Cov lus 2.1 tso cai hloov pauv qhov loj me rau titanium tuav-Kub Rolled Hloov thiab Daim Duab
Qhia kom pom loj (hli) | Qhov txawv me me (hli) | Tawm ntawm roundA lossis Tawm Ntawm SquareB (hli) |
6.35 txog 7.94.incl | 0.13 | 0.20 |
7.94 txog 11.11.incl | 0.15 | 0.23 |
11.11 txog 15.88.incl | 0.18 | 0.25 |
15.88 txog 22.22.incl | 0.20 | 0.30 |
22.22 txog rau 25.4.incl | 0.23 | 0.33 |
25.4 txog 28.58.incl | 0.25 | 0.38 |
28.58 txog 31.75.incl | 0.28 | 0.41 |
31.75 txog 34.92.incl | 0.30 | 0.46 |
34.92 txog 38.10.incl | 0.36 | 0.53 |
38.10 txog rau 50.80.incl | 0.40 | 0.58 |
50.8 txog 63.50.incl | 0.79 | 0.58 |
63.5 txog 88.90.incl | 1.19 | 0.89 |
88.90 txog 114.3.incl | 1.59 | 1.17 |
Cov Lus 2.2 Cov Ntawv Pom Zoo Hloov Hauv Ntev rau Titanium Tuav - Kub Kub thiab Khov Tiav
Qhia Kom Loj Me, tag nrho cov duab. (hli) | Ntev Ntau Hloov. (Hli) | |
Txog 3.66m.incl | Tshaj 3.66 txog 7.62m.incl | |
Mus rau 50.8.incl | -0/+12.7 | -0/+19.05 |
Tshaj 50.8 txog 101.60.incl | -0/+19.05 | -0/+25.4 |
Tshaj 101.60 txog 152.40.incl | -0/+25.40 | -0/+31.75 |
Tshaj 152.40 txog 228.60.incl | -0/+31.75 | -0/+38.1 |
Tshaj 228.60 txog 304.80.incl | -0/+38.10 | -0/+50.80 |
Tshuab Txiav Tom Qab Tshuab Ncaj | ||
Mus rau 76.20.incl | -0/+3.18 | -0/+4.76 |
Tshaj 76.20 txog 152.40.incl | -0/+4.76 | -0/+6.35 |
Tshaj 152.40 txog 228.60.incl | -0/+6.35 | -0/+7.94 |
Tshaj 228.60 txog 304.80.incl | -0/+12.70 | -0/+12.70 |
3. Ua haujlwm siab, Ua tiav, thiab tshwm sim
Titanium thiab titanium alloy bar thiab billet yuav tsum tsis txhob muaj kev raug mob sab nraud thiab sab nraud tsis zoo ntawm qhov uas
yuav cuam tshuam rau lub hom phiaj uas nws tau npaj. Cov khoom siv tsis raug cai tuaj yeem muab cov khoom tso ua ke raws li qhov tsim, xuab zeb, hauv av, lossis tig rov qab. Cov chaw tsim khoom lag luam yuav raug tso cai kom tshem cov khoom me me ntawm qhov tsis txaus los ntawm kev sib tsoo yog tias qhov sib tsoo no tsis txo qhov tuab ntawm cov khoom hauv qab no tsawg kawg uas tso cai los ntawm kev kam rau ua kom cov tuab tau txiav txim.
