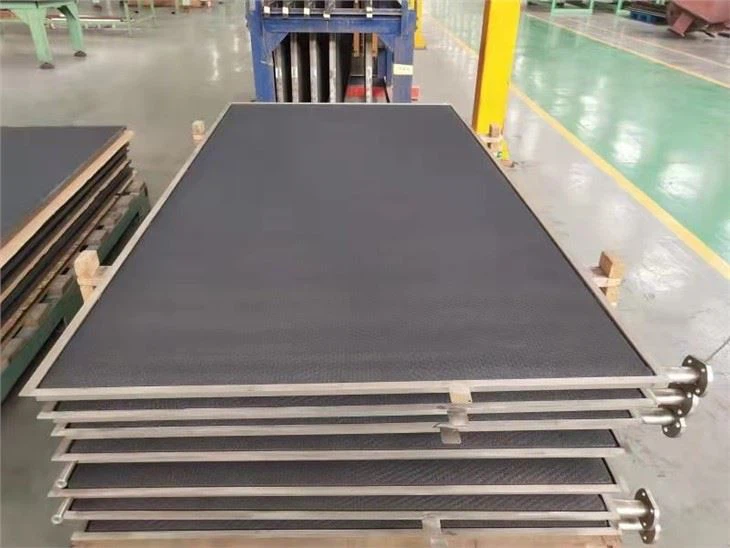

2.7m2 Electrolyzer Cell hauv Chlor Alkali tsob nroj

Taw qhia

Peb lub tuam txhab muaj ntau tus qauv tsim nrog xoom qhov sib txawv hloov membrane cell, uas daws qhov teeb meem ntawm UHDE gen3 gen4 gne5 peb 2.7m2 Electrolyzer Cell tuaj yeem hloov tau UHDE hlwb zoo, cov qauv tsim sab hauv rau lub xov tooj yog tsim nyog, ntau yoog rau kev ua haujlwm siab tam sim no, Kev siv hluav taws xob qis dua, kev siv hluav taws xob tam sim no ib zaug, txo cov txheej txheem hluav taws xob thoob plaws ntiaj teb, ua kom cov cataly ligidity, nce cataste elastic pas plaub daim txaj, mesh installation yam.

Kev Ua Haujlwm Guarantee

Peb lav tias raws li kev ua haujlwm ntawm 5.

Kev lees paub tus nqi nruab nrab ntawm lub xov tooj ntawm tes hauv thawj lub hlis ntawm kev ua haujlwm pib: thaum lub sijhawm ua haujlwm tam sim no yog 5.0KA / m2, qhov nruab nrab ntawm tes hluav taws xob tsawg dua 2.95v, thiab qhov sib txawv ntawm lub xov tooj ntawm tes thiab qhov nruab nrab voltage yog tsawg dua 100mv.

Anode ib nrab plhaub: guaranteed lub neej nyob rau hauv ib txwm ua hauj lwm tej yam kev mob ntawm lub ion membrane cell Ntau tshaj los yog sib npaug zos rau 8 xyoo;

Cathode ib nrab-plhaub: guaranteed lub neej nyob rau hauv ib txwm ua hauj lwm tej yam kev mob ntawm lub ion membrane cell Ntau tshaj los yog sib npaug zos rau 8 xyoo;

Electrolyzer Cell piv nrog UHDE Cell

1,2.7m2 Electrolyzer Cell nruab lub inclined ncig daim hlau, Yog li hais tias lub xov tooj ntawm tes nyob rau hauv lub siab tam sim no ceev kev ua hauj lwm, cov kua tis nyhav ntau dua, muaj kab pheeb ces kaum, thiaj li hais tias cov electrolyte concentration nyob rau hauv lub cell ntau uniform.

2, Chloralkali Electrolyzer muaj 25 cov khoom siv hluav taws xob raug faib rau sab nraub qaum; Qhov hluav taws xob tiv tauj rov qab ntawm chav tsev yuav raug txo kom qis dua 10mv;

6, Chloralkali Cell muaj 27pcs tav faib nyob rau hauv lub cell zawj, thiab qhov sib nrug ntawm cov tav yog 90 hli los xyuas kom meej lub siab ntawm electrode mesh phaj;

7,2.7m2 electrolyzer cell yog ntau zog, conductivity uniformity thiab cross-sectional cheeb tsam kuj zoo tuaj.

Peb lub tuam txhab kuj tseem tuaj yeem rov ua cov NBZ, UHDE, thiab AKC electrolyzer hlwb yog tias koj xav tau, Cov khoom siv hluav taws xob muaj feem xyuam kuj tuaj yeem muab, xws li hose, hose gasket, flange, bolt.etc.

Ib tug 2.7m2 electrolyzer cell siv nyob rau hauv ib tug chlor-alkali nroj tsuag yuav hais txog qhov chaw ntawm lub electrodes nyob rau hauv lub cell. Hauv cov nroj tsuag chlor-alkali, electrolysis yog siv los tsim cov chlorine gas, hydrogen gas, thiab sodium hydroxide (caustic soda) los ntawm kev daws ntawm brine (sodium chloride).

Lub electrolyzer cell feem ntau muaj ib qho anode thiab cathode raus rau hauv cov tshuaj brine. Thaum cov hluav taws xob tam sim no dhau los ntawm lub xov tooj ntawm tes, electrolysis tshwm sim, uas ua rau muaj kev cuam tshuam hauv qab no:

Ntawm lub anode: 2Cl⁻ → Cl2(g) + 2e⁻

Ntawm lub cathode: 2H2O(l) + 2e⁻ → H2(g) + 2OH⁻

Cov tshuaj tiv thaiv tag nrho: 2NaCl(aq) + 2H2O(l) → Cl2(g) + H2(g) + 2NaOH(aq)

Qhov 2.7m2 specification yuav hais txog tag nrho cov cheeb tsam ntawm ob lub anode thiab cathode nyob rau hauv lub electrolyzer cell. Qhov loj dua qhov chaw tso cai rau kev siv hluav taws xob ntau dua los ntawm kev ua kom thaj chaw muaj rau cov tshuaj electrochemical tshwm sim. Qhov no tuaj yeem ua rau muaj cov tshuaj chlorine ntau dua, cov pa roj hydrogen, thiab sodium hydroxide, uas yog cov tshuaj tseem ceeb hauv kev lag luam siv ntau yam txheej txheem.

Cim npe nrov: 2.7m2 cell, chloralkali electrolyzer, chloralkali cell.
