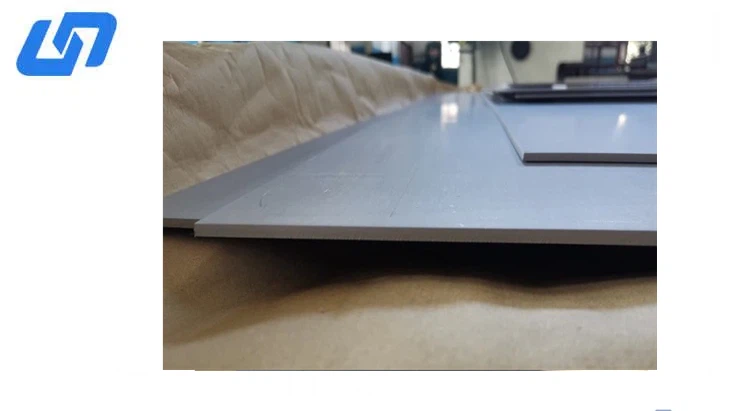

AMS 4911 Titanium Phaj
Qib: GR5 Ti6al4v UNS R56400
Qauv: AMS4911L, MIL-T-9046, AMS-T-9046
Titanium Sheet loj: 0.8mm txog 20mm thickness × 1000mm dav × ntev
Khoom Taw qhia
AMS 4911L yog ib qho kev qhia tshwj xeeb rau ib hom gr5titanium phaj, uas yog siv rau hauv kev siv aerospace vim nws lub zog siab thiab zoo corrosion kuj.
Tus "L" hauv AMS 4911 qhia tias titanium phaj tau kho cua sov los muab kev txhim kho toughness thiab tiv taus qaug zog. Cov txheej txheem kev kho cua sov no suav nrog cua sov lub phaj mus rau qhov kub thiab txias thiab tom qab ntawd txias nws hauv kev tswj hwm.
Cov titanium alloy tau teev tseg hauv AMS 4911L yog Ti-6Al-4V, uas yog siv dav hauv titanium alloy uas muaj 6% txhuas thiab 4% vanadium. Cov alloy no muaj lub zog-rau-qhov hnyav piv, zoo heev corrosion kuj, thiab zoo weldability. Kev tsim khoom ntawm AMS 4911L Titanium Phaj yog txias dov los yog kub dov, nto yog pickling kev kho mob.
Kev piav qhia
Qib: gr5 / Ti6al4v, UNS R56400
Txheem: AMS4911 L, MIL-T-9046, AMS-T-9046
Thickness: 0.8mm ~ 20mm
Dav: 1500-3000mm customized loj tau
Xeev: Annealed
Tshuaj muaj pes tsawg leeg
Element | min | max |
Aluminium | 5.5 | 6.75 |
Vanadium | 3.5 | 4.5 |
Hlau | -- | 0.3 |
Oxygen | -- | 0.2 |
Cov pa roj carbon | -- | 0.08 |
Nitrogen | -- | 0.05 |
Hydrogen | -- | 0.015 |
Yttrium | -- | 0.005 |
Lwm cov ntsiab lus, txhua | -- | 0.1 |
Lwm cov ntsiab lus, tag nrho | -- | 0.4 |
Titanium | seem | |
Lub cev muaj zog
Nominal Thickness, mm | Tensile zog Mpa | Yield zog Ntawm 0.2% Offset Mpa | Elongation hauv 50.8mm los yog 4D % |
Mus txog 0.20, excel | 920 | 866 | -- |
{{0}}.20 rau 0.63, excel | 920 | 866 | 6 |
0.63 rau 1.60, excel | 920 | 866 | 8 |
1.60 rau 4.76, excel | 920 | 866 | 10 |
4.76 rau 101.6, excel | 893 | 823 | 10 |
BENDING PARAMETERS
Thickness: Mus txog 0.070", 1.78mm--- Khoov yam: 4.5
Thickness: Tshaj rau 0.1874", 1.78mm txog 4.76mm--- Khoov yam: 4.5
Vim li cas thiaj xaiv peb rau Titanium Aerospace Phaj
1) Ob Airbus & Boeing pom zoo
2) Kev xa khoom sai hauv 7 hnub yog tias Tshuag thiab 7- 8 lub lis piam yog tias tsim khoom
3) Tshuab qhov loj thiab zoo li tus neeg thov
4) 100% Zoo warranty
5) MOQ: 1 pc
Daim ntawv thov Case
Ib qho piv txwv ntawm daim ntawv thov ntawm AMS 4911L titanium phaj nyob rau hauv aerospace yog nyob rau hauv kev tsim kho ntawm aircraft structural Cheebtsam. Titanium yog ib qho kev xaiv nrov rau cov ntawv thov no vim nws lub zog-rau-hnyav piv, uas tso cai rau kev tsim cov khoom hnyav tsis tau muaj zog uas tuaj yeem tiv taus kev sib tw ntawm kev sib tw.
Piv txwv li, Boeing 787 Dreamliner ua rau kev siv ntau ntawm titanium Cheebtsam, suav nrog cov khoom siv titanium ua los ntawm Gr5 titanium phaj. Cov khoom no muaj xws li tis thiab fuselage Cheebtsam, nrog rau lub cav mounts thiab tso pa system.
Lwm daim ntawv thov ntawm aerospace titanium phaj yog nyob rau hauv zus tau tej cov cav Cheebtsam. Titanium yog ib qho kev tiv thaiv zoo rau corrosion thiab kub kub, ua kom nws zoo rau kev siv nyob rau hauv qhov hnyav hnyav ntawm lub tshuab dav hlau. Cov khoom siv cav ua los ntawm titanium, xws li compressor blades thiab turbine discs, tuaj yeem pab txhim kho lub cav ua haujlwm thiab kev ntseeg tau.
Nyob rau hauv cov ntsiab lus, AMS 4911L titanium phaj yog siv nyob rau hauv ntau yam aerospace daim ntaub ntawv uas lub zog, durability, thiab tsis kam mus corrosion thiab kub kub yog ib qho tseem ceeb xav txog. Nws siv nyob rau hauv cov qauv ntawm lub dav hlau thiab lub cav qhov chaw tau pab txhim kho kev nyab xeeb thiab kev ua tau zoo ntawm cov dav hlau niaj hnub.
Cim npe nrov: AMS 4911 Titanium Phaj, aerospace Titanium Phaj
