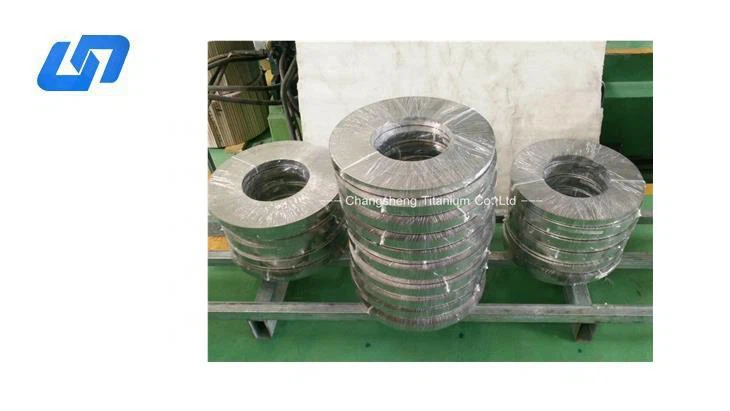

Titanium Conductor Bar rau Cathodic Protection
Parameter rau siv:
Dav: 12.7mm;
Thickness: 0.9 hli;
Substrate: ASTM B265 Qib 1;
Tsim lub neej: 50 Xyoo;
Daim ntawv thov: Cathodic Protection;
Export Lub Tebchaws: Malaysia.
Khoom Taw qhia
Product Overview
Titanium Conductor Bar yog tsim los ntawm Qib 1 titanium ribbon raws li ASTM B265 tus qauv. Nws yog tsim los rau kev faib tawm tam sim no hauv MMO titanium-raws li anode cathodic tiv thaiv systems.
Cov titanium conductor bar feem ntau yog siv ua ke nrog MMO ribbon anodes thiab MMO mesh anodes rau corrosion tiv thaiv daim ntaub ntawv, nrog rau saum toj no - av cia tank hauv qab, reinforced pob zeb lug, faus pipelines, thiab marine ib puag ncig.
Vim yog qhov zoo tshaj plaws corrosion kuj thiab txhua yam kev ruaj ntseg ntawm titanium, nws muab kev txhim khu kev qha tam sim no thiab kev pab lub neej ntev nyob rau hauv ib puag ncig hnyav.
Khoom Specification
| Yam khoom | Specification |
|---|---|
| Khoom siv | Titanium Qib 1 |
| Txuj | ASTM B265 |
| Cov duab | Titanium Ribbon / Conductor Bar |
| Nto | Pickled / Polished |
| Daim ntawv thov | Cathodic Protection System |
Standard Dimensions
| Dav (mm) | Thickness (hli) | Ntev (m) | Cov zis tam sim no (mA / m) | Cia siab rau lub neej |
|---|---|---|---|---|
| 12.7 | 0.9 | 152 / 155 | 86 | 50 xyoo |
Kev cai qhov ntev yog muaj raws li cov neeg siv khoom xav tau.
Khoom Khoom
Tshuaj muaj pes tsawg leeg
| Element | Cov ntsiab lus |
|---|---|
| Titanium | Tshuav |
| Hlau | Tsawg dua lossis sib npaug li 0.20% |
| Oxygen | Tsawg dua lossis sib npaug li 0.18% |
| Cov pa roj carbon | Tsawg dua lossis sib npaug li 0.08% |
| Hydrogen | Tsawg dua lossis sib npaug li 0.015% |
| Nitrogen | Tsawg dua lossis sib npaug li 0.03% |
Mechanical Properties
| Khoom | Tus nqi |
|---|---|
| Tensile zog | Ntau dua lossis sib npaug li 245 MPa |
| Yield zog | Ntau dua lossis sib npaug li 175 MPa |
| Elongation | Ntau dua lossis sib npaug li 24% |
| Elastic Modulus | Ntau dua lossis sib npaug rau 105 GPa |
Lub cev muaj zog
| Khoom | Tus nqi |
|---|---|
| Thermal Expansion Coefficient | 8.7 × 10⁻⁵ /K |
| Thermal conductivity (20 degree) | 15.6 W/m·K |
| Hluav taws xob Resistivity | 0.000056 Ω · cm |
Qhov zoo ntawm Titanium Conductor Bar
1. Zoo heev Corrosion Resistance
Titanium muab kev tiv thaiv zoo tiv thaiv:
- Dej hiav txwv
- Cov dej khov
- Dej tshiab
- Av ib puag ncig
- Tshuaj corrosion
Nws ua tau zoo tshaj cov khoom siv hluav taws xob xws li graphite thiab silicon hlau.
2. Lub teeb yuag thiab yooj yim installation
Titanium ribbon muaj lub zog siab - rau - qhov hnyav piv.
Piv nrog cov khoom siv hluav taws xob zoo sib xws:
- Tus nqi thauj khoom qis dua
- Ib qho yooj yim teb installation
- Txo qhov kev pheej hmoo ntawm kev puas tsuaj
3. Zoo heev Mechanical Stability
Lub titanium substrate muab:
- Siab ductility
- Zoo heev dimensional stability
- Kev tiv thaiv kev tawg thiab tawg
- Kev ntseeg tau ntev - lub sijhawm ua haujlwm
4. Uniform Kev faib tawm tam sim no
Lub titanium conductor bar xyuas kom meej:
- Kev sib txuas hluav taws xob ruaj khov
- Txawm tam sim no kev faib tawm
- Txo qhov system tsis kam
- Txhim kho cathodic tiv thaiv efficiency
5. Lub neej ua haujlwm ntev
Lub neej kev pab cuam yuav ncav cuag50 xyoonyob rau hauv haum cathodic tiv thaiv tej yam kev mob.
Daim ntawv thov
Titanium conductor tuav tau siv dav hauv kev txhawb nqa cathodic tiv thaiv tam sim no.
Reinforced Concrete Structures
Cov ntawv thov suav nrog:
- Cov choj
- Marine structures
- Pob zeb hauv paus
- Kev tsim kho sab nrauv
buried Steel Structures
Siv los tiv thaiv:
- Underground pipelines
- Steel foundations
- Cov chaw cia khoom
Cia Tank
Haum rau:
- Saum - hauv av cia tank hauv qab
- Cov roj tank
- Chemical cia tanks
Kev siv Marine
Tsim nyog ib puag ncig:
- Dej hiav txwv
- Offshore platforms
- Chaw nres nkoj thiab chaw nres nkoj
- Submarine qauv
Hom Cathodic Protection System
Titanium Conductor Bar + MMO Anode System:
DC Power Supply → Titanium Conductor Bar → MMO Titanium Anode → Tiv thaiv Hlau Structure
Tus neeg xyuas pib titanium faib tam sim no sib npaug ntawm lub zog mus rau lub network anode, ua kom muaj kev tiv thaiv corrosion zoo.
